Architecture plays a vital role in operating systems and computer systems, especially in determining and enhancing security measures, reliability, and efficiency. While there are several architectural patterns to choose from, microkernel architecture has gained more popularity in recent years. In place of the traditional monolith kernel, microkernel architecture offers a secure and modular base for operating systems. But then, what is microkernel architecture? Why would you need it? Challenges and real-world application cases. Here is a detailed guide explaining all insights about microkernel architecture.

What is Microkernel Architecture?

Microkernel architecture is an operating system pattern or design that splits an app or operating system into small microkernels or loosely coupled modules. These loosely coupled modules, or rather microkernels, are independent and perform specific tasks or functions such as memory management, process scheduling, inter-process communication, and device drivers. The other functionalities, better known as services or servers, are then moved to run outside of the user space. The core concept of microkernel architecture is to maintain the system to its simplest or minimal form by allowing external modules to offer additional functionalities.

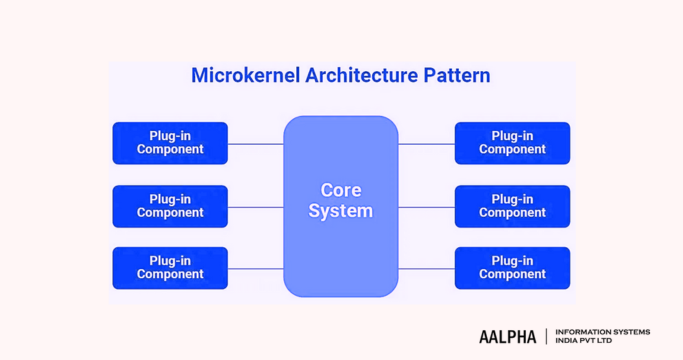

The microkernel architecture is made up of two architectural components: the plug-in modules and the core system.

The core system is made up of the vital functionalities necessary for the operations of the app or system, which vary depending on the type of the system. It can be a rich-in-feature core system or a minimal-feature system. Ideally, the core system is the basis foundation that allows the extension of the app or system’s functionality.

Plug-in modules, on the other hand, are independent and self-contained components that perform specific functions. Their main function is to extend the functionality or capability of the core system

Examples of microkernel architecture use cases include the following:

• Symbian – a former smartphone operating system and computing platform
• L4 microkernel – L4Linux operates as a service in a para virtualized state
• Mach – this is the microkernel for iOS, Apple MacOS, tvOS, watchOS, and iPadOS.
• The Eclipse IDE
• MINIX 3

Principles of Microkernel architecture

So, how well can you define microkernel architecture? Below are the guiding microkernel architecture principles you should know:

• Isolation and Security

Microkernel architecture thrives on isolation. The services run in the user space and send signals via solid and reliable IPC mechanisms. This means that if one service has an issue, the issue does not extend or affect other services. This isolation makes the system stable and secure.

• Minimalism

Minimalism is what defines microkernel architecture best. Microkernel architecture is made up of only vital functionalities such as inter-process communication – IPC, thread management, and low-level address space management. This principle eliminates the complexity in the microkernel architecture, thus making it easy to comprehend, secure, and easy to test.

• Flexibility & Extensibility

Thanks to this principle, it is easy for developers to update existing services or add new services without changing the kernel in microkernel architecture. This is especially important in an environment where regular updates and rapid changes are key aspects.

• Modularity

Microkernel architecture moves services that are not essential into the user space, thus achieving a high level of modularity. For instance, network protocols, file systems, and device drivers run separately, thus making it easy to develop, test, and make regular updates.

• Portability

Being a platform-independent, microkernel architecture enables developers to port the systems to diverse operating environments or hardware. This offers a flexible working environment.

Components of a microkernel architecture

The microkernel architecture is made up of the following key components:

• Microkernel – the core service or component of the system meant to perform key tasks like basic system management, process management, and low-level communication. This microkernel is kept minimal to enhance the stability and effectiveness of the whole system.
• User space services – these include extra services and functionalities outside the microkernel. They interact with the microkernel via defined protocols. Examples include user interfaces, network protocols, and file systems.
• IPC- System Calls and Inter-Process Communication – allows communication between components within the microkernel architecture for seamless functioning.
• Device Drivers – these are part of user space, allowing seamless hardware management and updates.
• Service Management – These include ways to manage diverse services running in the user space. It is all about unloading, leading, and coordinating the services to ensure smooth processes in the entire system.
• Application Layer – This is where user apps run, and they depend on services delivered by components in the user space, with the microkernel managing the main functionality.

How to design microkernel architecture

There is no defined format or processes to follow when designing a microkernel architecture. However, the following three steps or guidelines will give you directions you can follow to create a solid microkernel architecture:

• Identify and define the purpose of the microkernel

Think of the functionalities of the microkernel, which include memory allocation, message passing, process creation, and thread management. Don’t forget to define the protocols and interfaces for communication within the microkernel processes and other services.

• Categorize components and services

Evaluate and decide the components and services to classify as user-level services and how they will connect within the microkernel and other components within the system. Don’t forget to figure out the functionality, security, reliability, and performance of each service.

• Design and implement

Finally, you can now use appropriate tools, resources, and languages to design and implement user-level components and related processes. Once done, test and debug to ensure accuracy and compatibility. Don’t forget code documentation and maintenance for the operating system.

What are the benefits of Microkernel Architecture?

So, why would you opt for microkernel architecture and not any other option? Below are some notable advantages of microkernel architecture:

• Security

In computer systems and operating systems, security is one major concern that developers and even users have to figure out. Microkernel architecture, without any doubt, guarantees the security of the system in all aspects.

Being an architectural system with one core base, it becomes hard for malicious activities or hackers to access and compromise the entire system, thanks to the minimalism principle.

Again, the services operating in the user space have restricted access to the system’s resources, hence limiting possible mishaps with the system.

• Fault isolation

The microkernel advocates for fault isolation, a move that protects the entire system from any form of vulnerability. For instance, if one component or server malfunctions, developers can simply restart or replace that component or server without affecting other functions of the system.

• Scalability

Microkernel architecture is highly versatile. It is easy for developers to scale the system to align with diverse hardware architectures, thus providing ultimate flexibility.

• Reliability

Microkernel architecture is highly reliable, especially because of its focus and small nature when compared to monolith kernel.

As mentioned before, a malfunction in one component or server does not affect the other system, thus minimizing crash-related risks and enhancing fault tolerance.

Challenges or limitations of microkernel architecture

While microkernel architecture has a set of advantages, it also has a set of challenges that can’t go unnoticed. These challenges include the following:

• Development trade-offs

Sometimes, microkernel architecture might not be the ideal option for a specific project or system. For this reason, the challenge of using the microkernel approach in relation to the costs and benefits it offers arises.

For instance, you will enjoy the reliability, portability, modularity, and reliability of microkernel architecture, which in turn offers ultimate flexibility. However, complexity, performance, development, and compatibility issues will arise later on. So, microkernel architecture may favor some projects while some projects don’t suit microkernel architecture. That is why you should carefully analyze the system or project before you decide to use microkernel architecture.

• Complexity challenges

It is a complex process to design, develop, and maintain a microkernel or, rather, a distributed system or structure.

The microkernel architecture advocated for separated components, a clearly defined communication protocol, and a solid mechanism for handling and managing faults and errors within the kernel and user space components.

What’s more, the many processes involved in designing a microkernel architecture may lead the system to encounter security and scalability issues. For these reasons, a microkernel architecture requires a higher level of professionalism, experience, and skilled developers and admins than a monolithic architecture.

• Compatibility issues

Again, a microkernel system architecture may face some compatibility issues that can arise with other hardware and apps.

Most services take place in the user space in the microkernel architecture. Therefore, the operating system for microkernel may fail to support the APIs – the basic application programming interface required by the app’s functionality.

For instance, some POSIX functionalities may operate differently in a microkernel system, or such functions may be inaccessible in a microkernel operating system. Again, the microkernel system may lack direct access to drivers and hardware devices, thus affecting the overall performance and functionality of the system. So, porting may be required for a microkernel architecture system to function well or adaptation of existing hardware and apps to enable a microkernel system to work with other systems and apps seamlessly.

• Performance overhead

Finally, performance overhead is another major challenge in microkernel architecture. This is due to IPC – inter process communication between user levels and the kernel processes.

The IPC activities involve copying data, passing messages, and switching content, which takes up more memory resources and CPU time. Again, latency and unpredictability response issues may arise as a result of IPC, more so in real-time apps. With this said, microkernel architecture limits environments or services that require real-time responses and high-performance processes.

• Size of microkernel

Ideally, microkernel architecture is required to keep it minimal and small in size. However, adjusting and adding more features increases the size. It can be a challenge to balance between increasing necessary features for better scalability and maintaining the small size as required in microkernel architecture.

When to use Microkernel architecture

There are instances that favor microkernel services while others don’t. Here are some guidelines that will show you when to use microkernel architecture and when not to use microkernel architecture.

So, use microkernel architecture under the following:

• When starting a custom app or product-based app with planned extensions. Microkernel architecture will be ideal, especially when you release and update features from time to time and you need to take control of the features that users get.
• When building products or apps with several configurations based on the deployment model or a specific client environment. The plug-ins will offer diverse features and configurations depending on a given scenario.

When not to use microkernel architecture

Again, microkernel architecture is not suitable under the following requirements:

When all requests must pass through the core system, it doesn’t matter if the plug-ins follow point-to-point requests or remotely. Here, the core system is the sole component holding the architecture; hence, it is not ideal for elastic and highly scalable systems. Above all, such a system is not ideal for fault tolerance since it relies solely on the core system.

With this regard, one of the core principles of microkernel architecture is to minimize the core system’s functionality by pushing other services to plug-in modules for easy functioning, testing, and maintenance. So, if you need to process most of the changes in the core system and you don’t need to leverage the use of plug-ins for extra functionalities, then microkernel architecture isn’t the right option for you.

With that said and done, microkernel architecture is ideal, especially when you have a limited timeline and limited budget.

Comparing microkernel and monolithic architecture

As compared to the microkernel, all services in the monolith kernel operating system run in the kernel space; hence, they share the same memory space. This is contrary to the microkernel, where other services take place in the user space, with the core system maintaining only core services.

Other notable differences between microkernel and monolithic kernel include the following:

• Stability

In microkernel, a crash in any of the services doesn’t affect the functionality of the system, hence better stability. In a monolithic kernel, on the other hand, a crash in any of the services affects the entire system.

• Size

Microkernel, just like the name, is smaller in size compared to the monolithic kernel, which is larger and has all users relying on the same space.

• Security

Microkernel architecture is highly secure since only core functionalities or services run in the kernel. A monolithic kernel, on the other hand, is less secure since all the processes and services run in the kernel.

• Code requirement

Microkernel architecture requires more code compared to monolithic kernel architecture.

• Portability

Microkernel architecture is highly portable since most services and drivers run in the user space compared to the monolithic kernel, which has direct hardware access and, hence, is less portable.

• Performance

Monolithic kernel architecture has direct function calls and less overhead, hence higher performance. Compared to microkernel, there is more overhead and more message passing across services, hence reducing performance.

• Development

It is easier, faster, and seamless to develop a monolithic kernel architecture than a microkernel since all services and processes are integrated and use the same space.

• Modularity

Since microkernel architecture has separated services with some running in the user space, it is more modular than monolithic kernel architecture that uses the same space for all services and processes. It becomes easy to adjust services and features within a microkernel architecture without affecting the functionality of the entire system.

Conclusion

Microkernel architecture, also known as distributed system architecture, offers a modular and flexible approach to design. It maintains the core system’s functionalities minimally to allow stability and effectiveness for the entire system. Above all, you can easily modify the services without affecting the system’s functionality to enhance ultimate flexibility. So, when building complex systems that require iterations, then microkernel architecture is the best option.
